Nice OVIEW Programmer

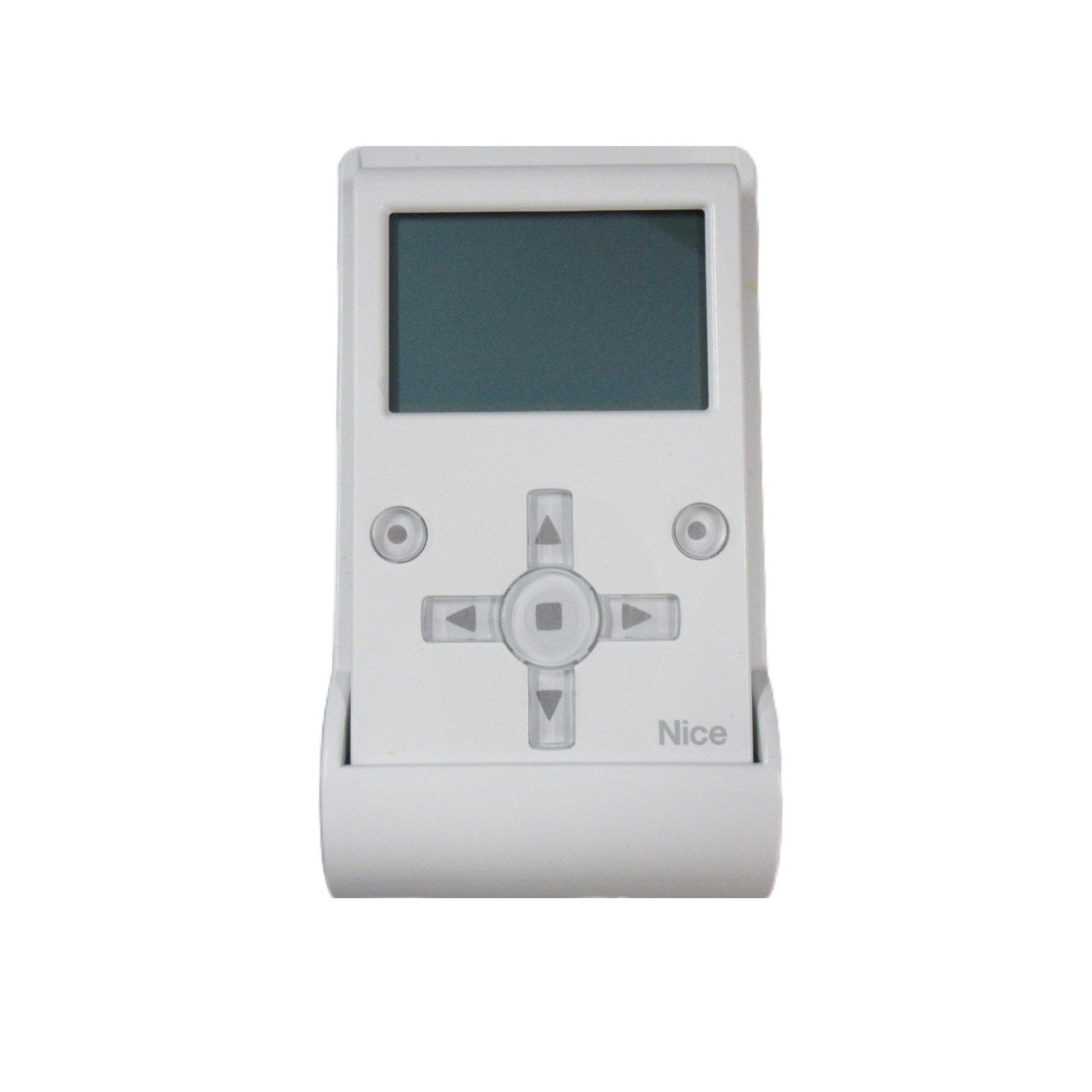

Oview is a device designed for the programing and control of NICE devices equipped with the Bus T4, such as gates and garage automation. The Oview communicate with products fitted with the Bus T4 connector. Acting both as a system for programming devices and a system for automated control, the Oview enables: Programming of devices connected on a network, Control of one or more automations, Diagnostics of devices on the network Built in clock system to setup scheduled automations Storage of settings and programs for rapid reconfigurations in the event of replacement (only available with the use of optional software) Kit includes: 1 x OVIEW Programmer Unit 1 x Wall mount holder
